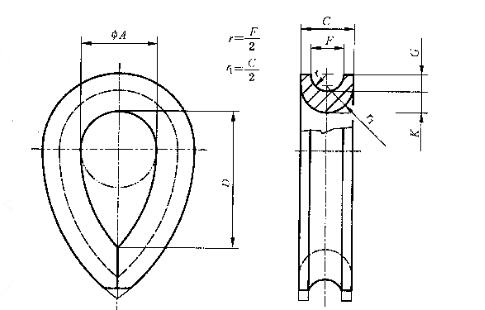

| 套环规格（钢丝绳公 称直径） d/mm | 尺寸/mm | 单件质量 Kg | |||||||||
| F | C | A | D | G min | K | ||||||
| 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | 基本尺寸 | 极限偏差 | ||||
| 6 | 6.7±0.2 | 10.5 | 0 -1.0 | 15 | +1.5 0 | 27 | +2.7 0 | 3.3 | 4.2 | 0 -0.1 | 0.032 |
| 8 | 8.9±0.3 | 14.0 | 0 -1.4 | 20 | +2.0 0 | 36 | +3.6 0 | 4.4 | 5.6 | 0 -0.2 | 0.075 |
| 10 | 11.2±0.3 | 17.5 | 25 | 45 | 5.5 | 7.0 | 0.150 | ||||
| 12 | 13.4±0.4 | 21.0 | 30 | 54 | 6.6 | 8.4 | 0.250 | ||||
| 14 | 15.6±0.5 | 24.5 | 35 | 63 | 7.7 | 9.8 | 0.393 | ||||
| 16 | 17.8±0.6 | 28.0 | 0 -2.8 | 40 | +4.0 0 | 72 | +7.2 0 | 8.8 | 11.2 | 0 -0.4 | 0.605 |
| 18 | 20.1±0.6 | 31.5 | 45 | 81 | 9.9 | 12.6 | 0.867 | ||||
| 20 | 22.3±0.7 | 35.0 | 50 | 90 | 11.0 | 14.0 | 1.205 | ||||
| 22 | 24.5±0.8 | 38.5 | 55 | 99 | 12.1 | 15.4 | 1.563 | ||||
| 24 | 26.7±0.9 | 42.0 | 0 -3.4 | 60 | +4.8 0 | 108 | +8.6 0 | 13.2 | 16.8 | 0 -0.6 | 2.045 |
| 26 | 29.0±0.9 | 45.5 | 65 | 117 | 14.3 | 18.2 | 2.620 | ||||
| 28 | 31.2±1.0 | 49.0 | 70 | 126 | 15.4 | 19.6 | 3.290 | ||||
| 32 | 35.6±1.2 | 56.0 | 80 | 144 | 17.6 | 22.4 | 4.854 | ||||
| 36 | 40.1±1.3 | 63.0 | 0 - 4.4 | 90 | +6.0 0 | 162 | +11.3 0 | 19.8 | 25.2 | 0 -0.8 | 6.972 |
| 40 | 44.5±1.5 | 70.0 | 100 | 180 | 22.0 | 28.0 | 9.624 | ||||
| 44 | 49.0±1.6 | 77.0 | 110 | 198 | 24.2 | 30.8 | 12.808 | ||||
| 48 | 53.4±1.8 | 84.0 | 120 | 216 | 26.4 | 33.6 | 16.595 | ||||
| 52 | 57.9±1.9 | 91.0 | 0 -5.5 | 130 | +7.8 0 | 234 | +14.0 0 | 28.6 | 36.4 | 0 -1.1 | 20.945 |
| 56 | 62.3±2.1 | 98.0 | 140 | 252 | 30.8 | 39.2 | 26.310 | ||||
| 60 | 66.8±2.2 | 105.0 | 150 | 270 | 33.0 | 42.0 | 31.396 | ||||
